With the PULSE-Adapter [Coin] it is possible to connect cashless payment systems like Nayax cashless payments, Ingenico - Smart POS, CCV EU, Payter Payment terminals , OTI - Payment Readers, USA Technologies - ePort Cashless Devices, Sacoa Debit Card, POS and Redemption System, a coin chute with impulse switch, or any other pulse device, easily via plugable terminal connector to a standard 10 pin coin validator plug, like it is on the CASH-Interface2 or CASH-Interface MC8 board.

PULSE-Adapter [Coin]

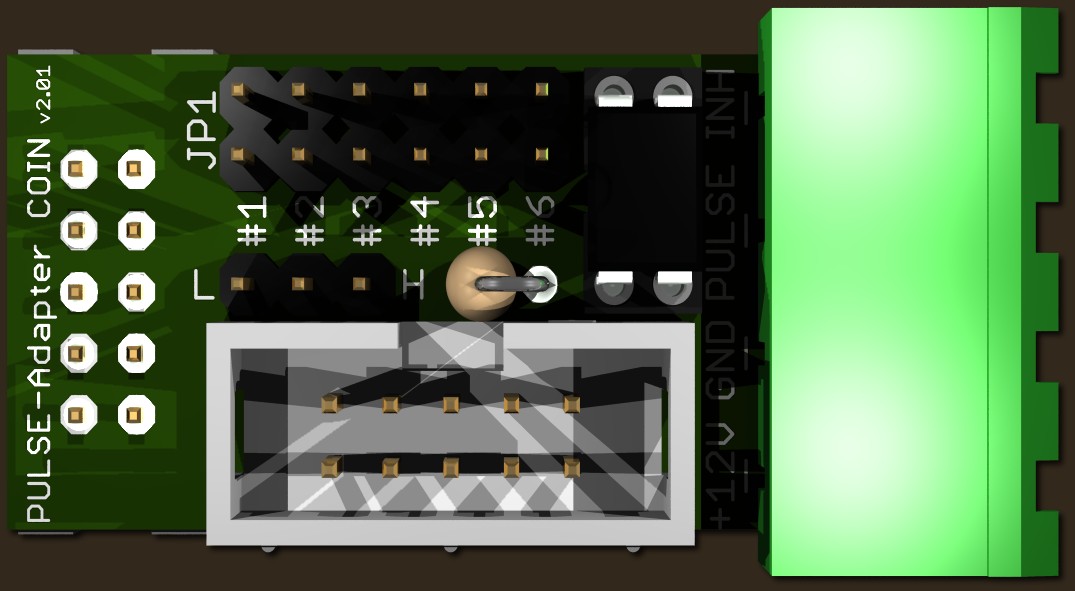

The PULSE-Adapter [Coin] is plugged in directly to the existing COIN connector. The coin validator is connected to the PULSE-Adapter [Coin] and can still be used. With a jumper you can select the coin channel on which the external credit signal is transferred.

The PULSE-Adapter can handle ACTIVE LOW and ACTIVE HIGH signals. Just set the L/H Jumper to L (LOW) or H (HIGH) position.

PULSE-Adapter [Coin]

Additionally there is an INHIBIT out to control the acceptance of the connected device.


PDF Manual PULSE-Adapter [Coin]

CASH-Interface2 Nayax Connection CASH-Interface2 Nayax Connection


Please place your order via the WebShop
Please send us your inquiry via E-Mail form
