With the CUBE-MK2-Adapter [Intelligent] it is possible to connect hoppers of the type CUBE HOPPER MK2 INTELLIGENT to an Azkoyen hopper plug (e.g. on a CASH-Interface2 or CI MC8).

CUBE-MK2-Adapter [Intelligent]

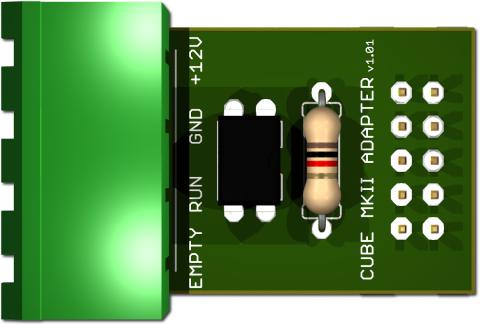

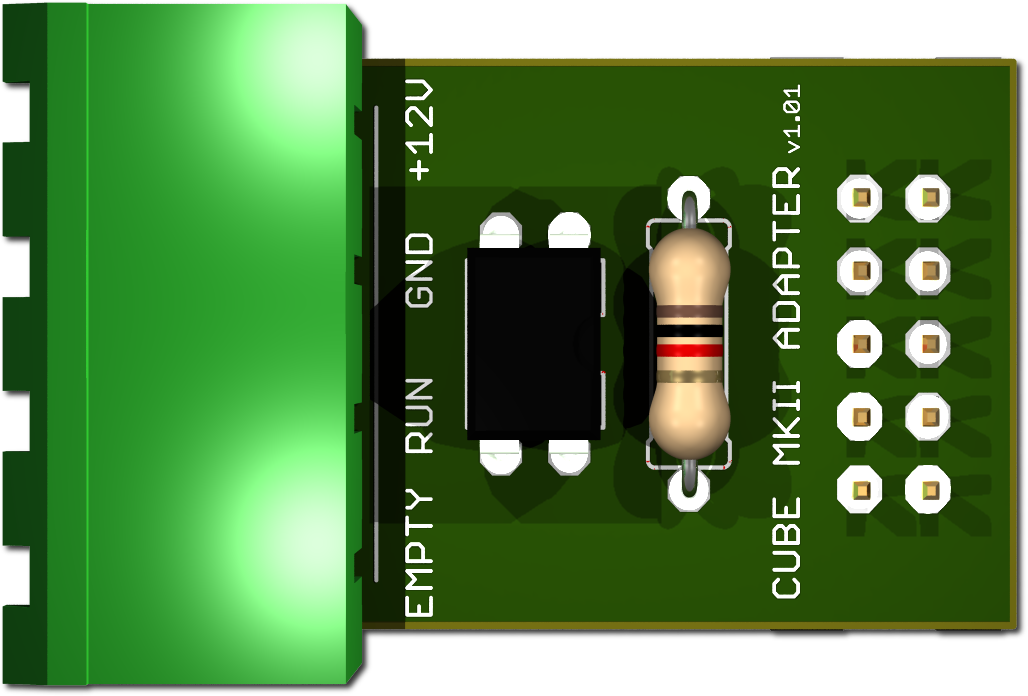

The CUBE HOPPER MK2 INTELLIGENT works with positive Logic and therefore needs a level converter. This is achieved by using an optocoupler. The CUBE-MK2-Adapter [Intelligent] type1 is plugged in directly to the HOPPER connector.

CUBE-MK2-Adapter [Intelligent]

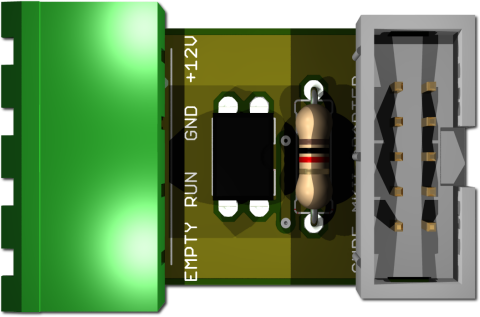

The CUBE-MK2-Adapter [Intelligent] is also available with a jack connector (type 2).

CUBE-MK2-Adapter [Intelligent]


Please place your order via the WebShop
Please send us your inquiry via E-Mail form
