The COIN-Simulator simulates an electronic coin validator (PARALLEL Interface, channel 1 to 6), and offers the possibility to add credits by a push button. Simply plug in the 10 pin flat ribbon cable to the machine and book any credits. The COIN-Simulator can also be used to test any device with an electronic coin validator, like solarium coin boxes, car wash vacuum cleaner, changing machines, and so on.

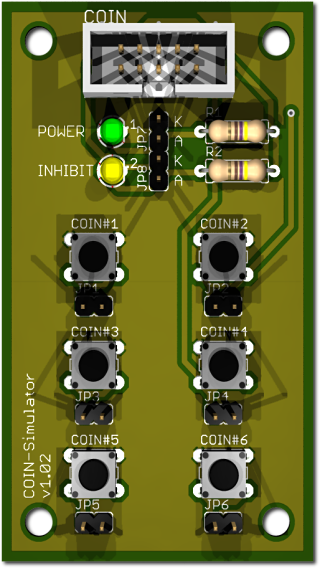

board size: 42,86 x 72,39 mm For each of the coin channels 1-6 there is a push button available, which can be used to simulate the corresponding coin. External buttons or encoders can be connected via a 2-pin header, to control the device with own signals. Two LEDs show the operating voltage from the machine, and the enabled line (INHIBIT). Also ideal as a mobile test device for service technicians.

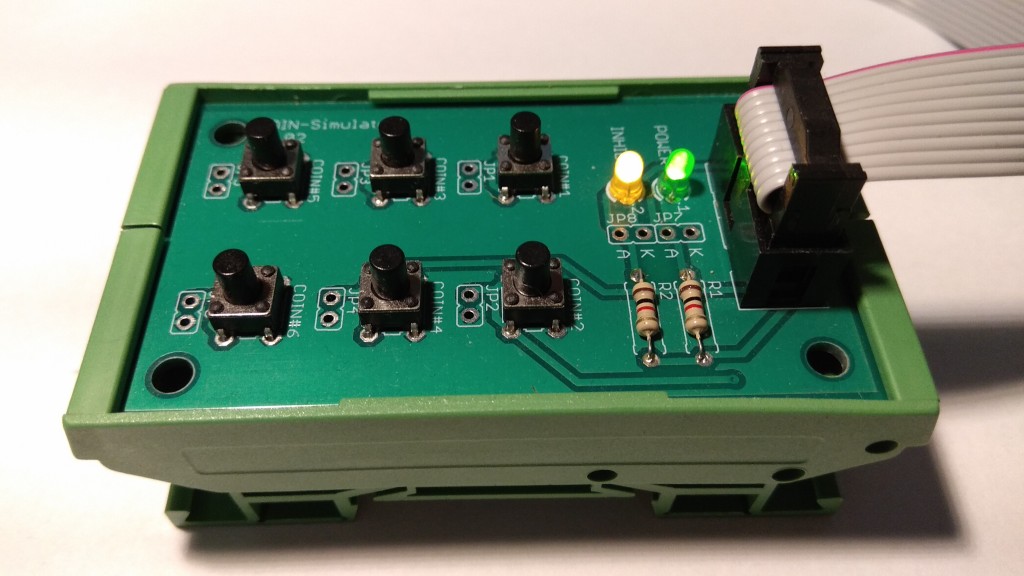

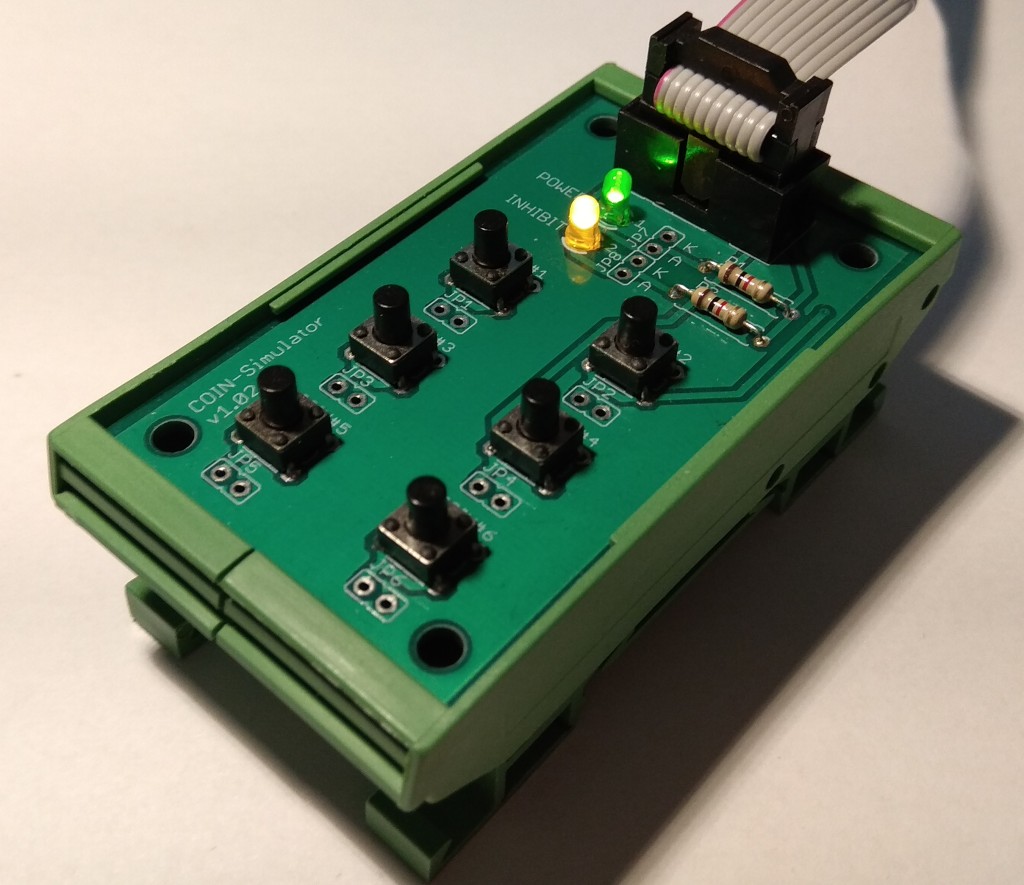

COIN-Simulator in the DIN rail PCB holder

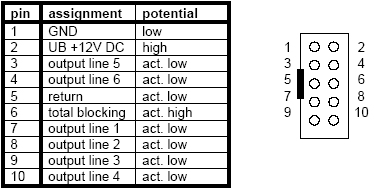

The coin simulator fits for all machines using the default 10 pin PARALLEL interface.
|
|||||||||||
|
