The 8 channel digital IN/OUT module offers 8 digital input channels and 8 digital output channels. The IO board can be used to control electrical devices, e.g. heaters, vans, pumps, valves, solid-state relays and other power equipment for home automation as well as industrial automation applications.

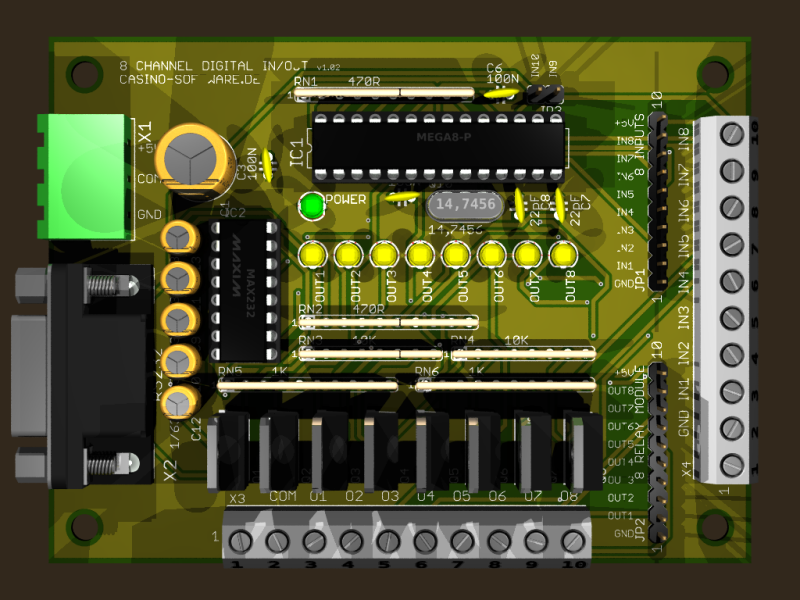

8 Channel Digital IN/OUT Module
board size: 100 x 75 mm

The I/O module's 8 digital inputs can be used to determine the state of push buttons, switches, relay contacts, limit or safety switches or other digital signals. The number of inputs/outputs can be further expanded by connecting more cards to the PC.

Features:

• 8 Digital inputs (e.g push button, switch, relay contact, ...)
• 8 Digital N-channel power MOSFET transistor outputs (55V/30A).
• Input and output connection via simple screw terminals.
• Additionally on board plug to connect an 8 channel relays board
   with switching voltages up to 250VAC.
• Every output has a LED indicator.
• Works on the USB (with USB to Serial converter) or serial port.

8 Channel Digital IN/OUT Module

8 Channel Digital IN/OUT Module manual 8 Channel Digital IN/OUT Module manual



Download 8 Channel Digital IN/OUT Module software
This software package includes: Manual, example project for Delphi incl. source code. The example application IO8.EXE can also be used as command line application. This way it is possible to control the board by using BATCH file. Example batch files are included.

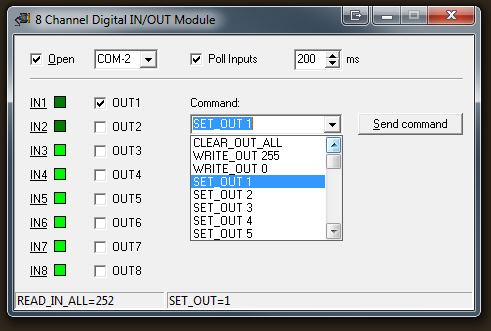

8 Channel Digital IN/OUT Module example program

Applications examples:

• Home automation
• Industrial automation
• Control electrical devices like lighting systems, heaters,
   cooling vans, pumps, valves, solenoids, and more.
• Alarm system
• Model railway control
• Illuminated push button panel, e.g. slot machine
• ...



Download 8 Channel Digital IN/OUT Module Keystroke Edition
This software package includes: Manual, Keystroke Edition Software.
With the keystroke edition it is possible to send keystrokes to an other windows application. This way the other application can be controlled by the inputs of the 8 Channel Digital IN/OUT module.


8 Channel Digital IN/OUT Module Keystroke Edition



Scope of supply 8 Channel Digital IN/OUT Module:
- 8 Channel Digital IN/OUT Module
- SUB-D cable for PC connection (9pol., m/f, 1,8m)
Price per piece: 79,00 EUR (plus VAT) WebShop




Accessory:
8 Channel Relay Module

8 Channel Relay Module
8 Channel Relay Module, equipped with high-current relay (AC250V/10A).

Price per piece: 24,95 EUR (plus VAT) WebShop




Ready to use software:

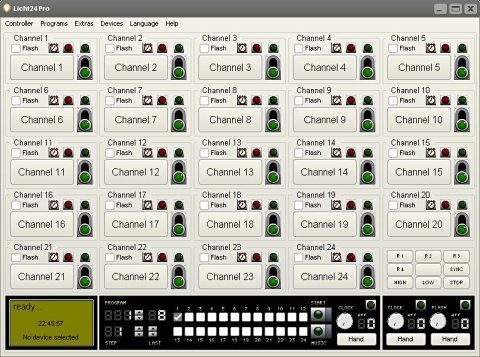

Licht24 Pro

Special offer:
- Licht24 Pro Software
- 8 Channel Digital IN/OUT Module
- SUB-D cable for PC connection (9pol., m/f, 1,8m)
Price per piece: 119,00 EUR (plus VAT) WebShop
